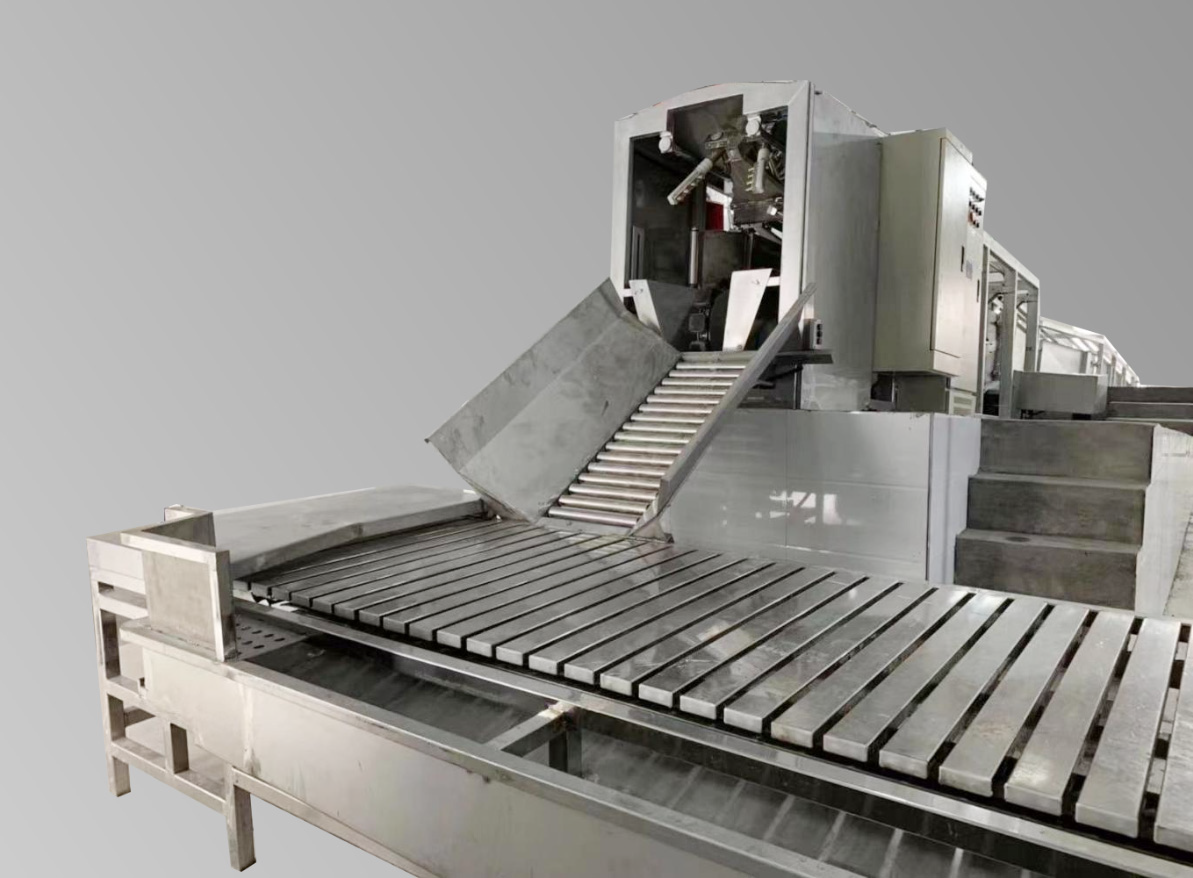

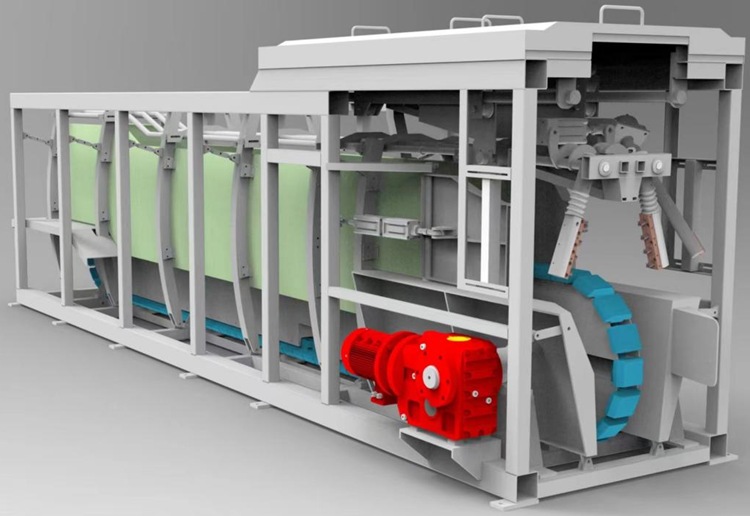

automatic pig three point stunning machine
| Application: | Which main used to fix and convey living pig for automatic stunning |
| Power: | 3Kw |
| Stunning frequency: | 50Hz |
| Stunning current: | ≤5A |
| Stunning time: | ≤4s |
| Air consumption: | ≤0.5M³/Min |
| Air pressure: | 0.4-0.6Mpa |
| Loading weight: | 100±25Kg |
| Missed rate: | ≤1% |
| Out size: | 6000*100*1750mm(L*W*H) |
| Component and material: |
1.Hot galvanized or stainless steel main frame 2.High-quality carbon steel sprockets, chains, drive shaft 3.Rubber block 4.Stainless steel protective cover 5.PLC controlling system 6.Photoelectric switches 7.Frequency converter 8.Intermediate relay 9.Low-voltage electrical |
